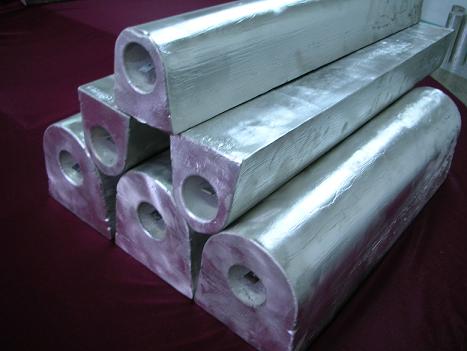

High Potential Cast Magnesium Anodes For Super Protection
XCTAT High Potential Magnesium Anodes offer typical high driving potential of high purity magnesium cast type, these anodes produce an open circuit potential of -1.77~ -1.82v (with respect to Cu/CuSO4 reference electrode) ,providing more current output per pound than H-1 alloy magnesium anodes ,which is 20-30 percent greater than conventional magnesium anodes .The high driving voltage means greater protection can be delivered from fewer anodes , so the anodes is the best choice for engineered systems in high resistive soils.

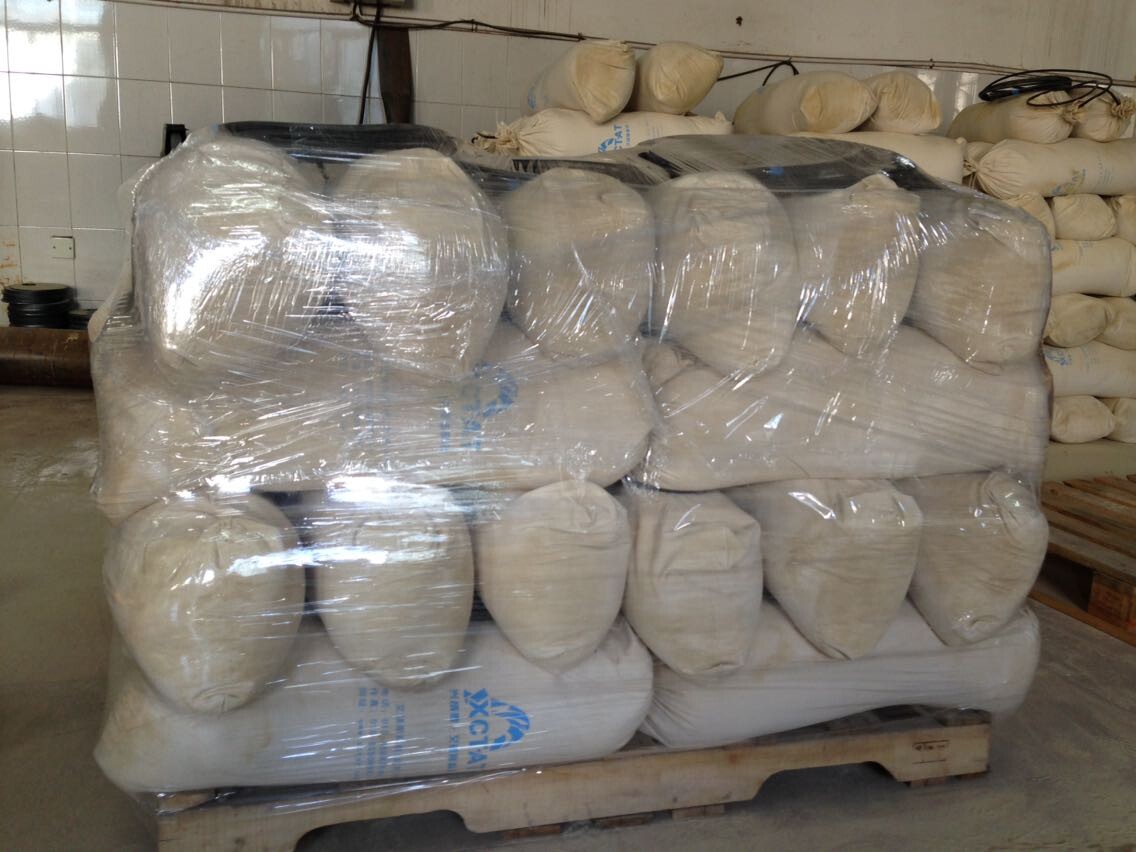

Prepackaged Anodes
XCTAT prepackaging anodes are packed in cotton bags in low resistivity ,quick wetting, prepare backfill consisting of 75% hydratred gypsum ,20% bentonite,and 5% sodium sulphate.
Cable:XLPE/PVC,HMWPE,THHN/THWN. Diameter range from 6 mm2 to 25 mm2 and welded to the steel core. Cable connection is covered by epoxy or coal tar enamel. Anodes and backfill are packaged in heavy duty cotton bag and protected by plastic bag. Anode to cable connection resistance:0.01 Ohm max..
XCTAT High Potential Anodes according to the following standards sizes
Chemical analysis and potential tests are performed on every heat
Other special types of cast anodes are available according to customer’s request and different specifications.
