Main Technical Indexes（MMO）Anode
Thermal expansion coefficient： 8.7*10-5/K
Heat conductivity（20℃）：15.60W/(m.k)
Resistivity：0.000056 ohm.cm Conductive slice Component ：According to ASTM B265 Grade 1
Thermal expansion coefficient：8.7*10-5/K
Thermal conductivity（20℃）：15.60W/(m.k)
Resistivity：0.000056 ohm.cm
Elastic modulas：105Gpa(14900000PSI) Min
Tensile factor：245Mpa (35000PSI) Min
Yield strength：175Mpa(25000PSI) Min
Elongation：24%Min
Mixed Metal Oxide (MMO) Titanium Anode

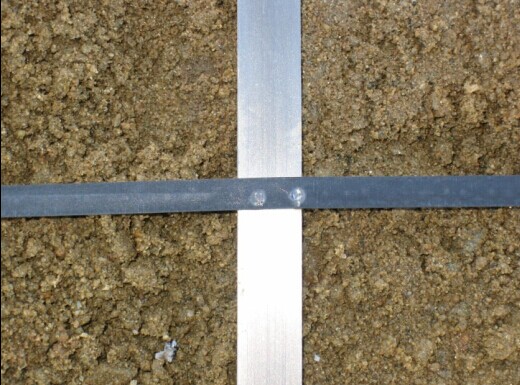

This Grid type anode is made up of import Mixed Metal Oxide (MMO) Titanium anode ribbon and Titanium sheet by weld crosswise, and it is an auxiliary anode used in impressed current cathodic protection. We put this anode in tank foundation to protect the tank outside bottom. Characteristics ①The current distribution is very uniform, and the output is adjustable, which can provide full protection to the tank
②The stray current is very few, and it can not cause corrosion to other structure
③You do not need to backfill, and the installation is simply, which is easy to assure the quality
④You do not have to insulate the pipe and tank, at the same time you do not need to alteration the electric and the preventing thunder grounding system. It is hardly influenced by construction and has a long life-span. Application： Suitable to use in the cathodic protection for tank and reinforced concrete structure.
