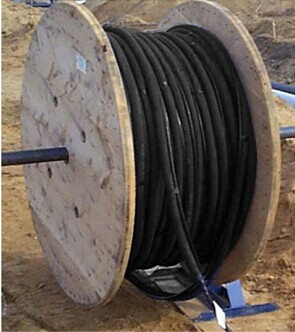

Anodeflex is a long-line, flexible, cable-like anode, which is placed in continuous close proximity to the target structure. Uniform distribution of cathodic protection current is therefore achieved on applications where many conventional anode ground beds do not work.

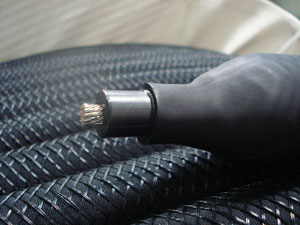

Key to the product’s performance is the central, conductive-polymer coated copper conductor. This unique construction allows current to flow long distances down the center conductor, while allowing sufficient cathodic protection current to continuously pass through the conductive polymer all along the length of the anode.
Mainly used in the bottom of the buried pipelines and storage tanks. In order to solve the old pipeline coating aging, most flexible anode cathodic protection applied using the protective current becomes large, but also solve the interference, high resistivity, tank bottom current uneven distribution problem. Flexible conductive anode is made of plastic, conductive plastic coating on the copper, its structure and appearance is very similar to the cable, so called cable-shaped anode. Product feature: •Anode is always in close proximity to pipeline
Distributes current uniformly over total length of pipeline.
No over- or under-protected areas.
Prevents accelerated coating disbondment.
More effective & economical than a series of discrete anodes. Independent of variations in soil resistivity.
•Pipeline rehabilitation without excavation
A fraction of the cost of recoating.
Environmentally friendly.
No loss of revenue or supply interruptions.
No safety concerns as needed for working on live lines.
Far quicker, up to 1.25 miles (2 km) laying speed per day.
•Long continuous circuit lengths
90% fewer joints than conventional anode systems.
Lower maintenance costs.
•Avoids interference and stray current problems
Enhances long-term performance. Focuses current on target structure. Improves protection and cost efficiency.
•Pre-packaging coke breeze
Ensures low resistance ground bed all the time. Ensure the polymer coated cable is centered. Simplifies field installation.
Installation with standard cable laying equipment
Fast, easy, cost effective.
Friendly to the environment
